Measuring Range: 1.0~350mm (45#Steel). Operation Frequency: 5MHz /2.5MHz (2.5MHz using special probe). Max. Limit for Tube Curvature Measurement: Ø20x3mm (45#Steel) Resolution: 0.01mm (1~99 mm); 0.1mm (100 mm)
Accuracy: H<10mm, ±0.05mm; 10-99mm: ≤±(0.01+H/200)mm; >10 0mm: ≤±(0.1+H/100)mm; (H: thickness of material to be measured)

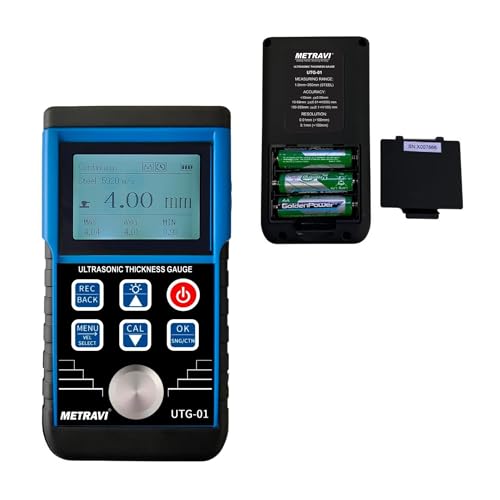

Power Supply: 3x 1.5V AA alkaline batteries. Sound Velocity Range: 1000~9999 m/s. Calibration Test Block: Instrument is inlaid with a 4.00mm Calibration Test Block with a tolerance of ±0.05mm. Auto Calibration.
Auto Linear Compensation. Data Logging: 10 measurements. Low Battery indication. Auto Power-off.

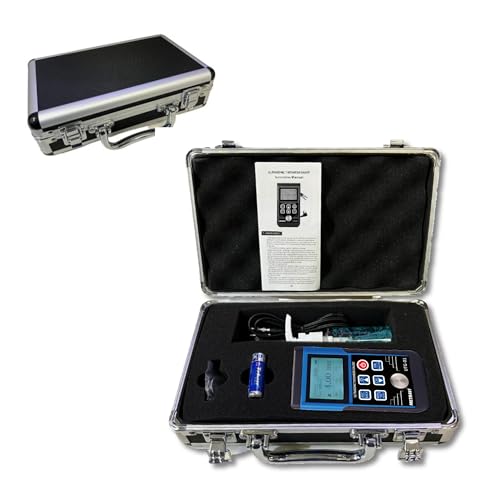

Alarm: Buzzer alarm sounds if measurement result is outside user-settable limits. Accessories: Ultrasonic Probe (5MHzφ10mm), 50ml Coupling Agent, Batteries, User Manual, Hard Carrying Case.
Metravi UTG-01 Ultrasonic Thickness Gauge for high density m… is Marketed by https://www.excelinds.com/online-shop/
